Double Low E and Heat Reflective Insulating Glass Unit IGU
Double Low E and Heat Reflective Insulating Glass Unit IGU
Double Low E and Heat Reflective Insulating Glass Unit IGUDouble Low E and Heat Reflective Insulating Glass Unit IGUDouble Low E and Heat Reflective Insulating Glass Unit IGUDouble Low E and Heat Reflective Insulating Glass Unit IGUDouble Low E and Heat Reflective Insulating Glass Unit IGUDouble Low E and Heat Reflective Insulating Glass Unit IGUDouble Low E and Heat Reflective Insulating Glass Unit IGUDouble Low E and Heat Reflective Insulating Glass Unit IGU

Double Low E and Heat Reflective Insulating Glass Unit IGU

Product Description


Glass type
Tempered insulated glass
Color Customer demand
Thickness5mm 6mm 8mm 10mm 12mm 15mm 19mm
SizeCustomer demand  ( Min300mm X 300mm  to Max2440mm X 3660mm )
Edge typeFlat edge
Quality CertificateEN12150 ,  BS6206 , ISO9001 , IGCC
Payment termTT ,L/C, Western union
ShapeRectangle shape , irregular shape

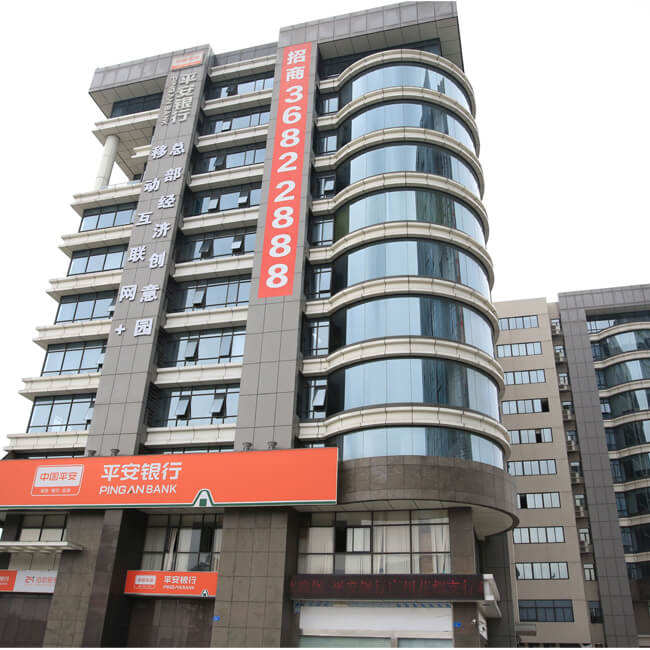

applicationBuilding facades, office buildings, public places, houses,curtain wall  etc.

Product Introduction

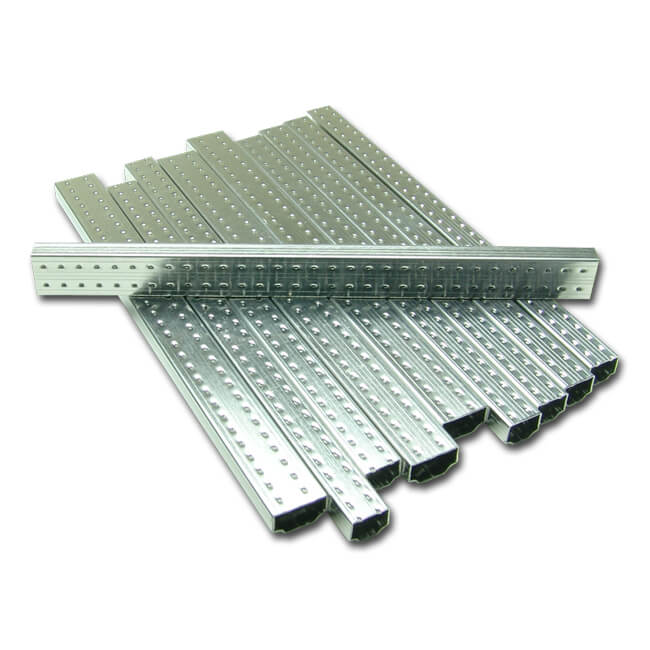

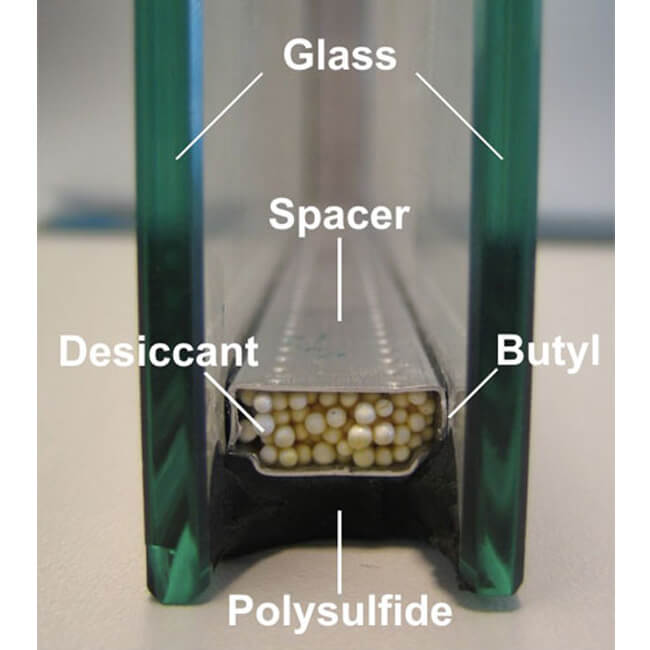

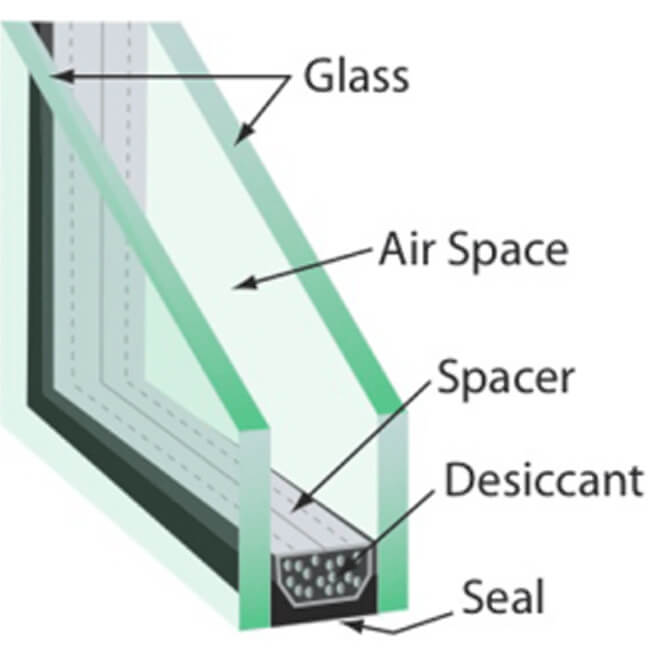

Insulating glass (IGU or DGU) is made of two or more than two pieces of glass between which a space with certain width is partitioned by aluminum frame filled with highly efficient molecular absorbent. The edge of insulating glass is sealed by high strength sealing sealants. To ensure the performance of IGU, double sealing must be used. Butyl should be used for the first sealing, polysulfide rubber or silicon structural sealants should be chosen accoding to glazing manner.

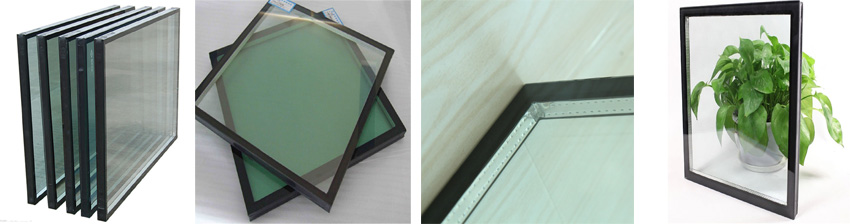

tempered insulated glass.jpg


Product Features

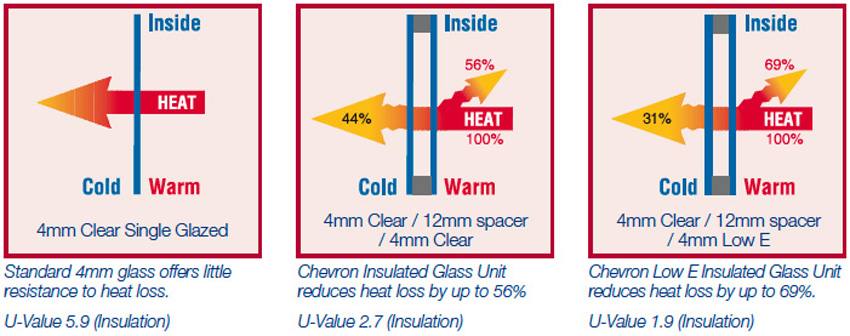

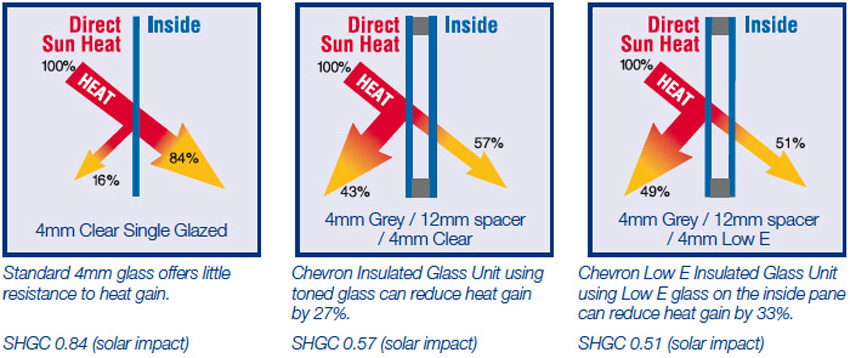

Termal Performance: Heat insulation performance of IGU is the most ideal among all processed glass products available on the market.Heat transfer coefficient K value can be effectively reduced by IGU. If inert gas as neon, argon, helium is filled, heat transfer coeffiecient can be further dramatically reduced.

Sound Insulation Performance: IGU is ideal sound insulating material. Normal IGU can reduce noise by 30 decibel, IGU filled with inert gas can further reduce 5 decibel.

tempered insulated glass1.jpg

Anti-dew under Low Temperature: AS IGU is filled with enough desiccant,it can effectively absorb the vapor in the iner space or penetrated from outside to ensure the gas in inner space is absolutly dry and won't dew.

Optical Performance: Various glass substrates can be used for IGU to meet the request of sunlight transmission and reflection.

Light Weight: Under the same condition heat insulation, the replacement of partial brick wall or concrete with IGU can reduce load of building and simplify building structure.

tempered insulated glass2.jpg

Product Application

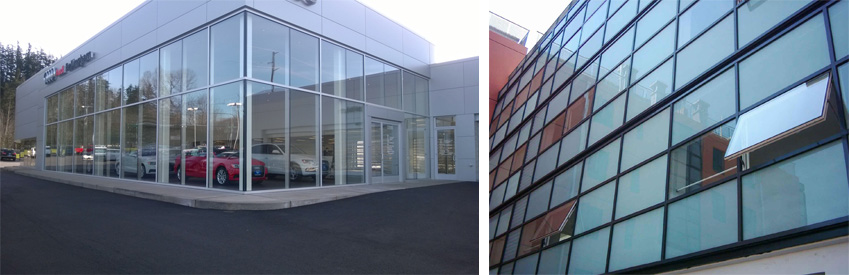

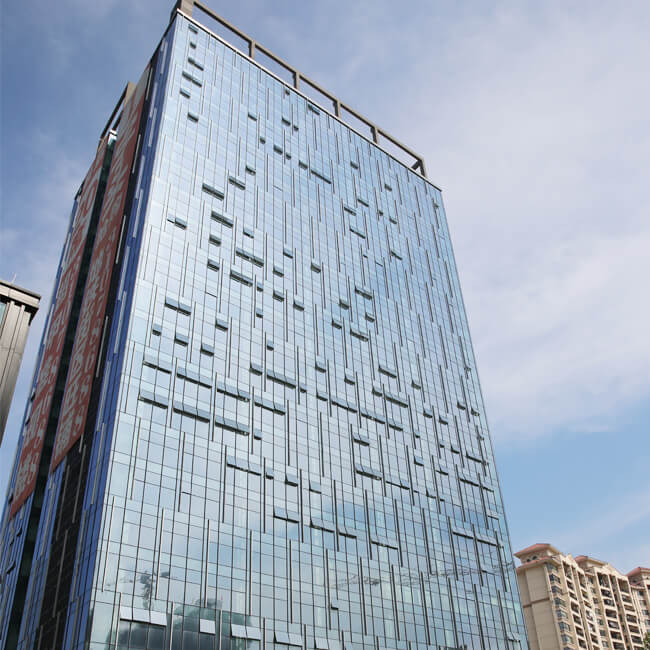

Widely used in all kinds of curtain wall of building, indoor partition or refrigerator.

tempered insulated glass3.jpg

Types of Product

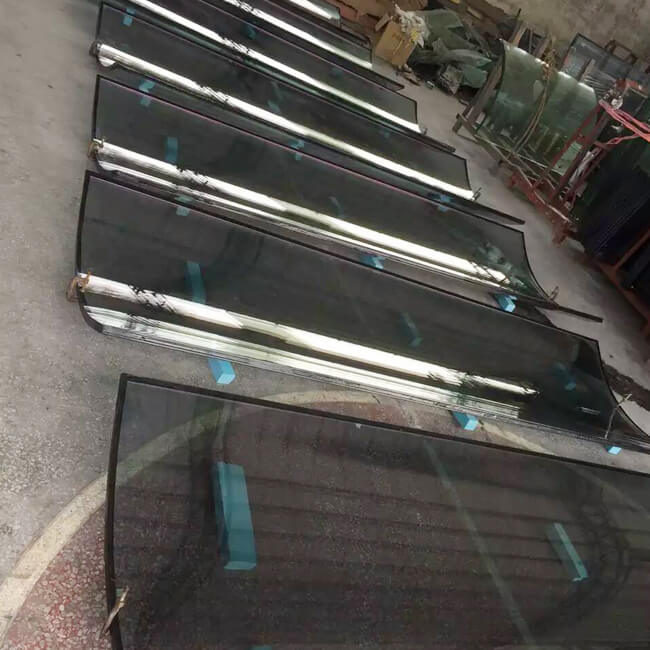

Clear glass, tinted glass, tempered glass, heat-reflective coated glass, Low-E glass, laminated glass and color glazed glass can be composed into various compound product.Flat or bent IGU can be processed.

Quality

In accodance with GB/T 11944-2002 Chinese Insulating Glass Standard

In accordance with JISR 3209 Japanese Standard
